Implantmed Classic Physiodispancer SI-923 with WI-75EKM Contra-Angle

In stock - 100 items available
SKU: WH.16929001
Regular price $2,860.00
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS EXPRESS Shipping
Your orders will be prepared and shipped within 3 business days.

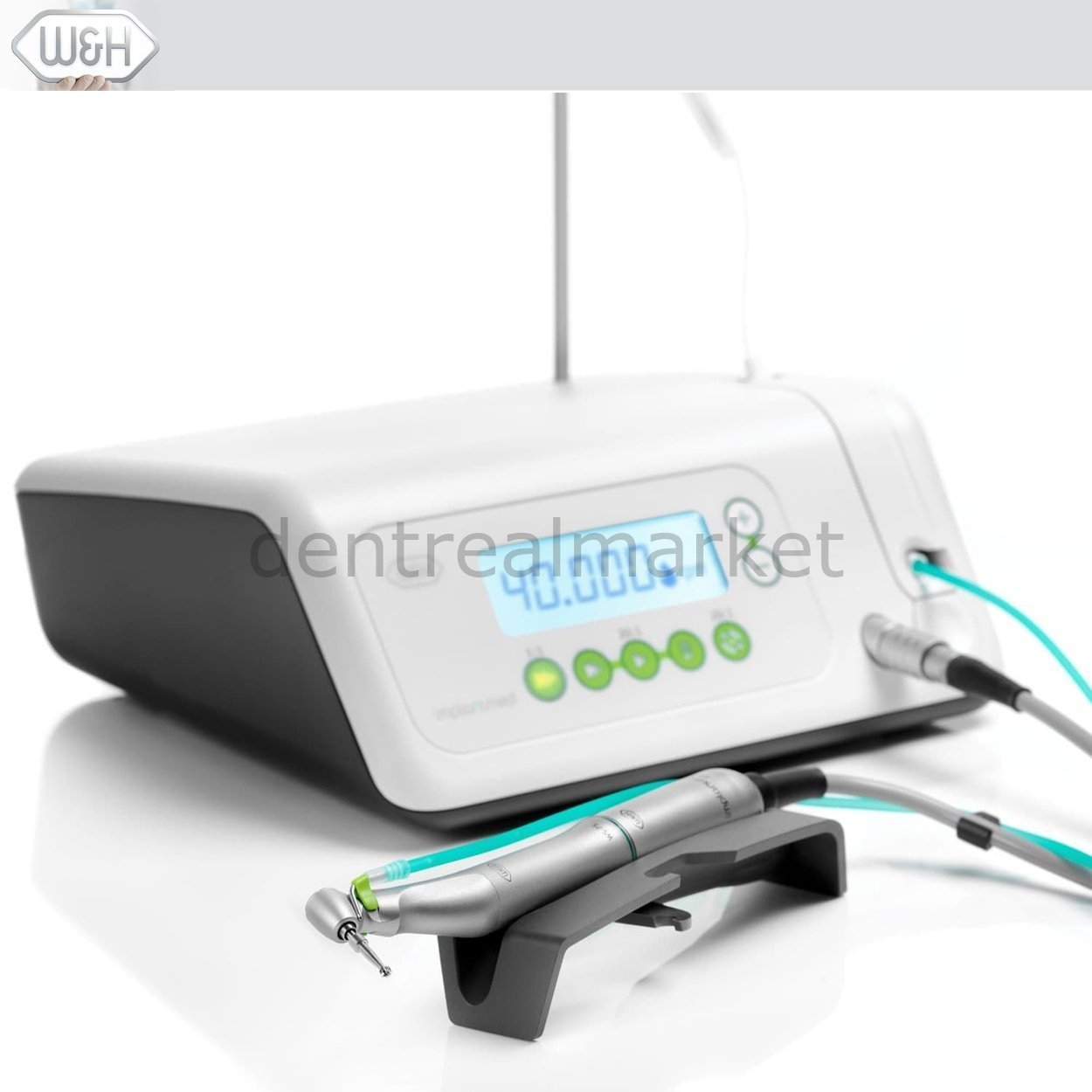

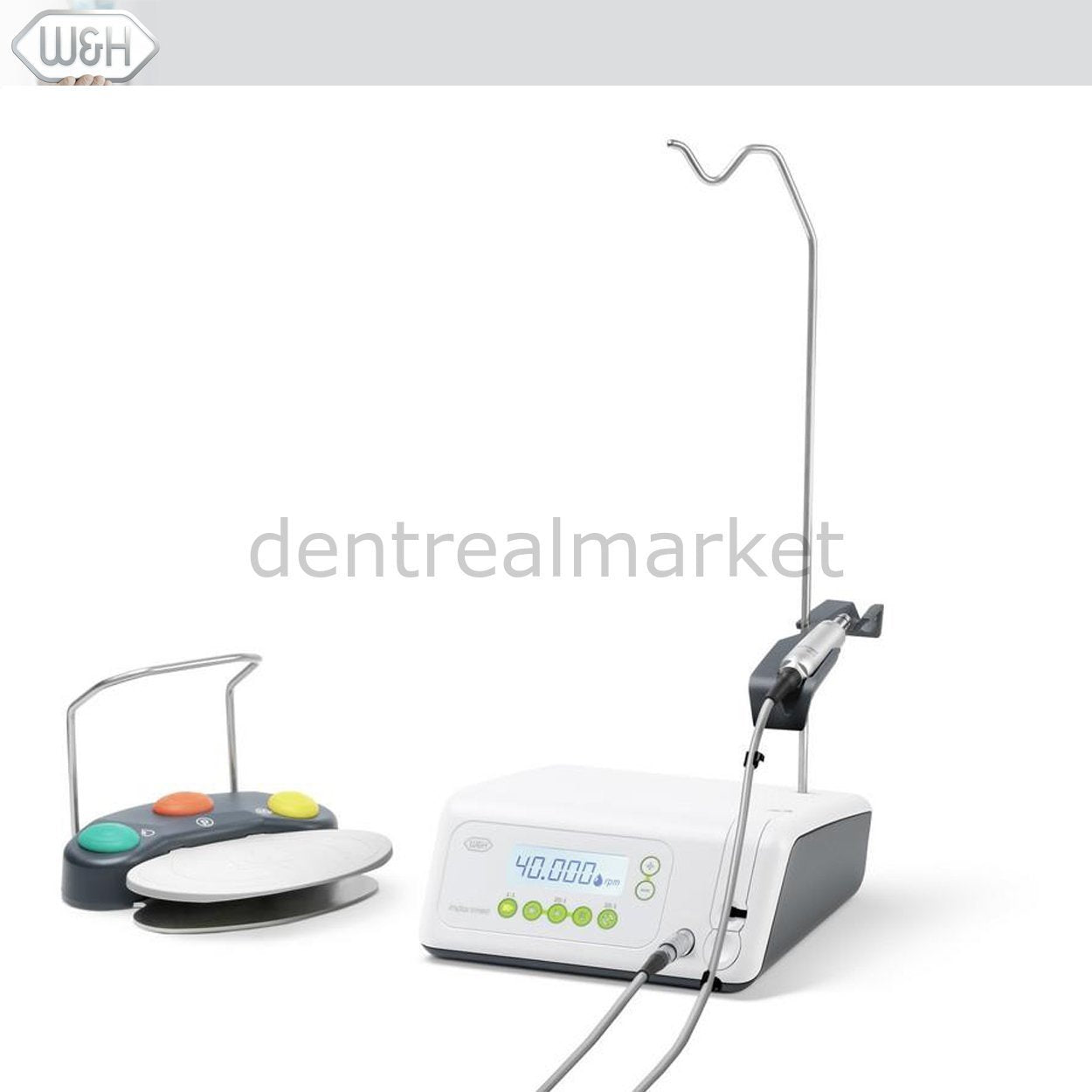

Implantmed Classic SI-923

Implantmed Classic SI-923 - Your reliable partner in implantology

The Implantmed Classic SI-923 excels by virtue of its ease of operation, powerful motor and automatic thread cutter function.

The logically designed operating concept supports implantologists and ensures all programs can be set up easily, by pressing the buttons on the unit or by operating the foot control.

ADVANTAGES

  • Easy to use
  • Powerful motor with 5.5 Ncm torque
  • Wide speed range: 300 up to 40,000 rpm at the motor
  • Precise torque limitation: 5 to 70 Ncm
  • Automatic thread cutter function
  • Motor with cable, thermo washer disinfectable and sterilizable

POWERFUL MOTOR

With this powerful motor even difficult implantological procedures no longer demand great strength.

A motor torque of 5.5 Ncm and a motor speed range of 300 up to 40,000 rpm make light work of tough procedures.

The automatic torque control at the rotary instrument, which can be set on the Implantmed unit at between 5 and 70 Ncm, ensures it is safe in operation.

EASE OF OPERATION

Ease of use is the major feature.

You can set up all the steps for an implantation without difficulty by pressing the plus and minus buttons on the unit or by operating the foot control.

The set parameters are clearly visible on the large display and are easy to read.

In combination the short motor and the ergonomically shaped contra-angle handpiece are perfectly balanced. You can work for long periods without fatigue or cramp in your hand.

AUTOMATIC THREAD CUTTER

The thread cutter function, which is integrated in Program 5, supports you when inserting implants in hard bone.

Cutting a thread before screwing in an implant prevents excessive compression of the bone and promotes stress free healing of the implant.

TECHNICAL DATA

  • Max. torque at the rotary instrument (in program 4): 70 Ncm
  • Mains voltage: 220 – 240 V
  • Frequency: 50 / 60 Hz
  • Max. mechanical output power: 80 W
  • Max. torque at the motor: 5.5 Ncm
  • Motor speed range in the nominal voltage range: 300 – 40,000 min-1
  • Straight and contra-angle handpieces: WI-75 E/KM / S-9 L G / S-11 L G / WS-56 L G / WS-75 L G / WS-91 L G / WS-92 L G
  • Length of motor cable: 1.8 m
  • Coolant flow rate at 100 %: min. 90 ml/min
  • Foot control: S-N2
  • Height / width / depth: 100 x 235 x 240 mm

CONTENTS

  • 1 x Control unit
  • 1 x Motor with 1.8 m cable incl. 5 x clips
  • 1 x Foot control S-N2
  • 1 x Stand
  • 1 x Motor support
  • 1 x Mains cable
  • 2 x locking pins
  • 3 x disposable irrigation tubings
  • with WI-75 EKM Implant Contra-Angle 20:1
