Top Spin Pin Hole Opening Device - Pindex

In stock - 100 items available
SKU: REN.18400000
Regular price $1,740.00
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.

Top Spin Hole Opening Device - Pindex

The Top spin pin drilling unit offers additional precision, safety, and durability. Its exceptional concentric precision and special drill technology make it unique.


  • Drilling precision of ≤ 0.01 mm thanks to sophisticated shaft-bearing technology.
  • High-torque motor with no power loss when drilling (8000 rpm).
  • Extremely easy drilling with no resistance thanks to a special drill geometry.

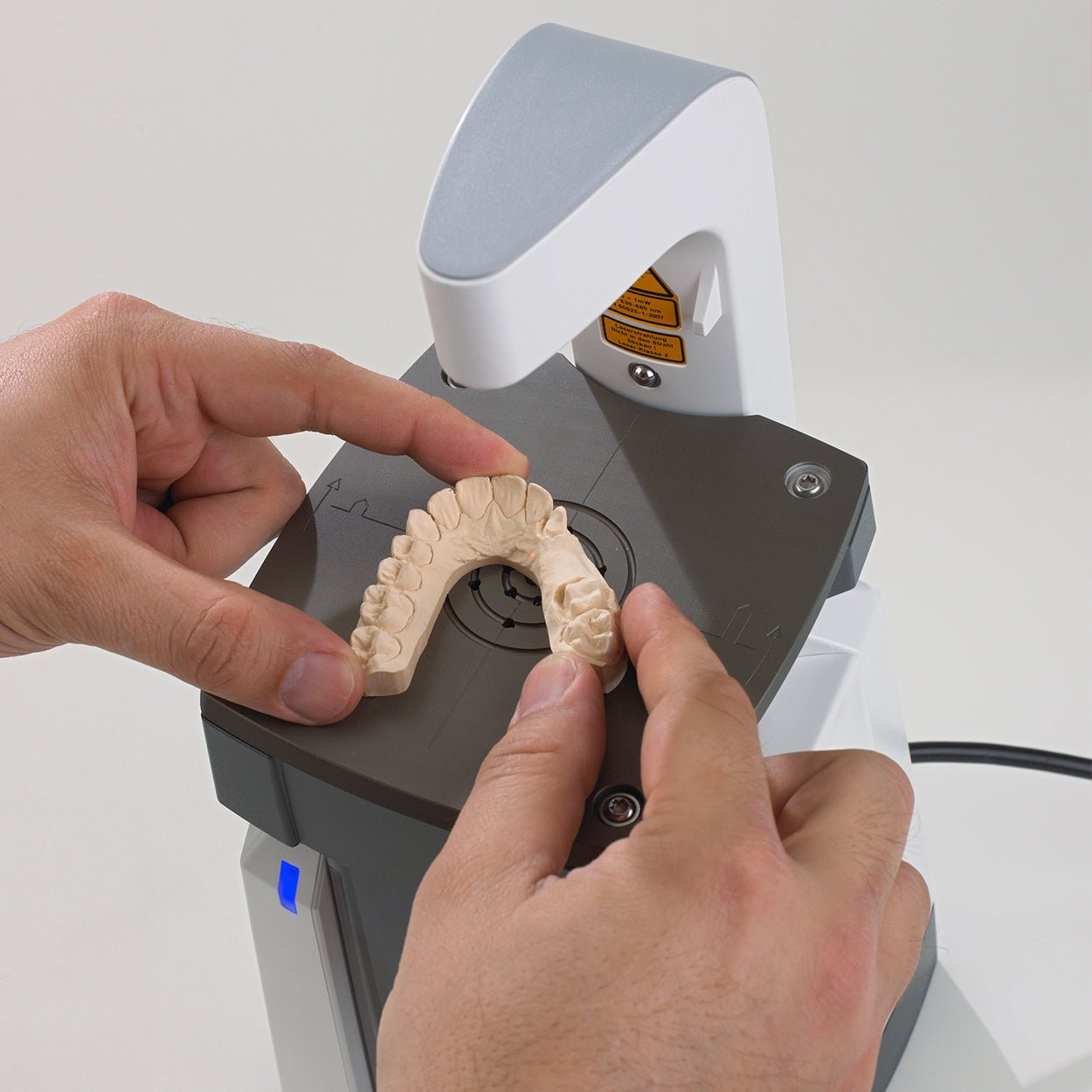

  • Two unit positions and different gripping options for fixing the dental arch in position enable an individual, ergonomic working posture.
  • The individual, infinitely variable drill-depth setting of 0–20 mm (0–0.79") also allows drilling for pin systems with resin plates.
  • With adjustment it is also possible to use drills with a longer shaft.
  • Compact design with a high degree of stability.

Techical Details

  • Stock Code: 18400000
  • Permissible main voltage: 100-240 V
  • Permissible main frequency: 50-60 Hz
  • Weight: 4 kg
  • Dimensions: 153 x 330 x 175 mm
  • Power Consumption: 12 W
  • Laser Class:
