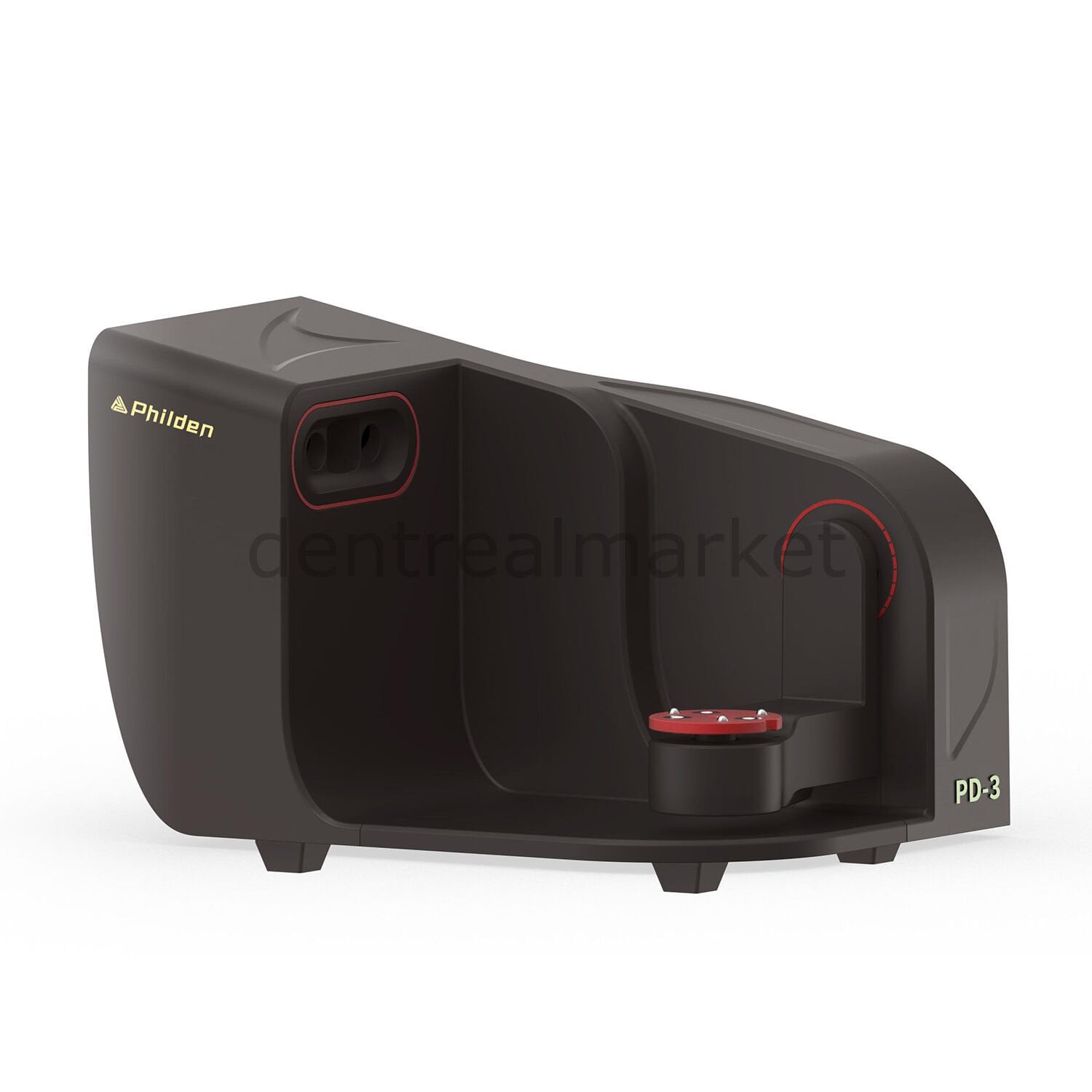

Philden PD-3 Lab Scanner – Laboratory Model Scanner

Philden PD-3 — High-Precision True-Color Lab Scanner

PD-3 is a high-precision, true-color 3D scanner designed for dental laboratories. With 360° scanning without blind spots, it captures fine details such as margin lines clearly. It automatically detects narrow, hard-to-reach voids and completes them with additional scan passes.

True color texture

Using a mono camera and color-recovery technology, it captures full surface color detail—supporting realistic results for aesthetics-critical work such as removable prosthetics.

High precision for implant scanning

• Minimizes powder use for cleaner, more accurate scans
• Supports dynamic articulator scanning and virtual articulator occlusal transfer
• Scan accuracy ≤6 µm per ISO 12836

Flexible full workflow compatibility

• Supports different model types and scan modes
• Static and dynamic articulator scanning
• Supports EXOCAD virtual simulation and articulator transfer

Smart scan completion

With L-series algorithm support, it automatically detects missing regions; a multi-mesh hybrid 3D reconstruction algorithm completes the data for a more complete model.

Technical specifications

• Model: PD-3
• Camera resolution: 2 × 2.4 MP
• Scan accuracy: ≤6 µm (ISO 12836)
• Full-arch scan time: 9 seconds
• Plaster model scan time: 19 seconds
• Scan field: 96 × 82 × 60 mm
• Output formats: STL, PLY, OBJ
• Light source: Blue light
• Color scanning: True color
• Dimensions: 293 × 270 × 257 mm
• Weight: 6 kg
• Power supply: DC 24V
• Connection: USB 3.0
• Articulator compatibility: Dynamic/static scanning, articulator transfer support

Box contents

• PD-3 laboratory scanner
• Power adapter
• USB connection cable
• Scan platform and accessories
• User manual and software
