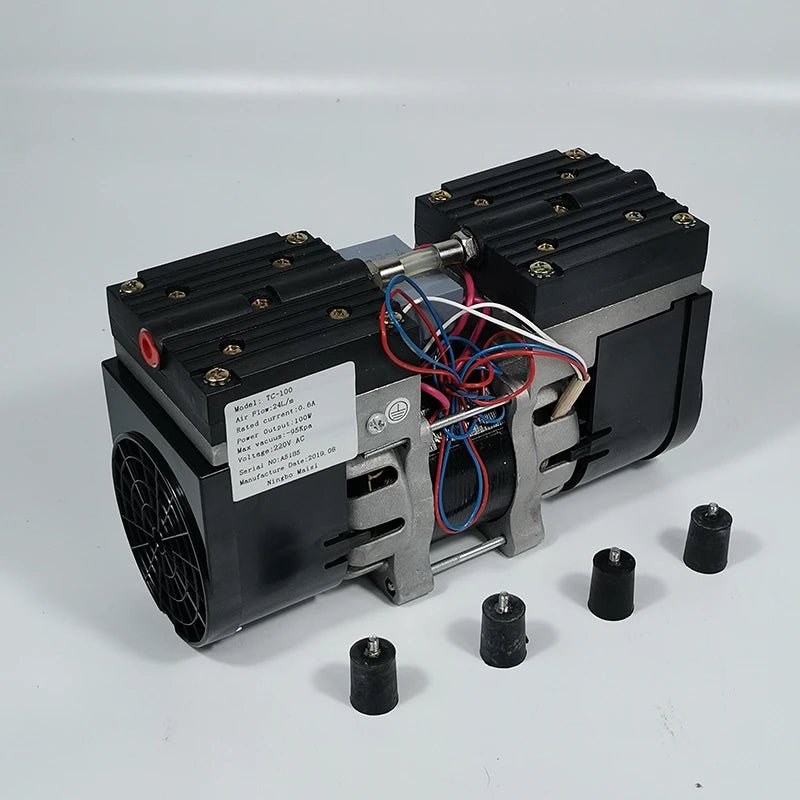

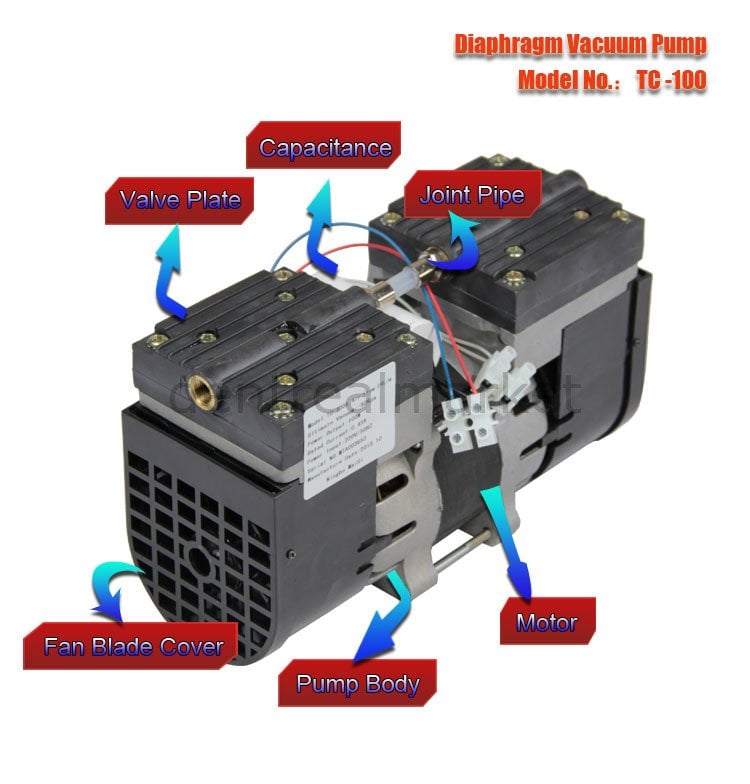

TC-100 Vacuum Pump For Autoclave - 220V

In stock - 100 items available
Regular price $300.00
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.


Model Number TC-100
Flow :  28L/min
Max.vacuum :  -950mbar

Performance Data
Head configuration: Vacuum
Voltage/frequency: 220V 50HZ/110V 60HZ
MAX No-load flow: 28L/min
Max power: 100W
Max current: 0.45/0.9A
Max vacuum : -950mbar
Inlet /outlet diameter: G1/8"
Speed: 1400RPM
Net Weight: 3.5KG

Motor Data
Motor insulation class: F
Thermal swich: YES(140℃)
Line lead wire color: Blue/red,20AWG / Brown/red,20AWG

Head Data
Head material: PP
Membrane material EPDM
Valve material: Silicone
Operating temperature: 0-40℃
