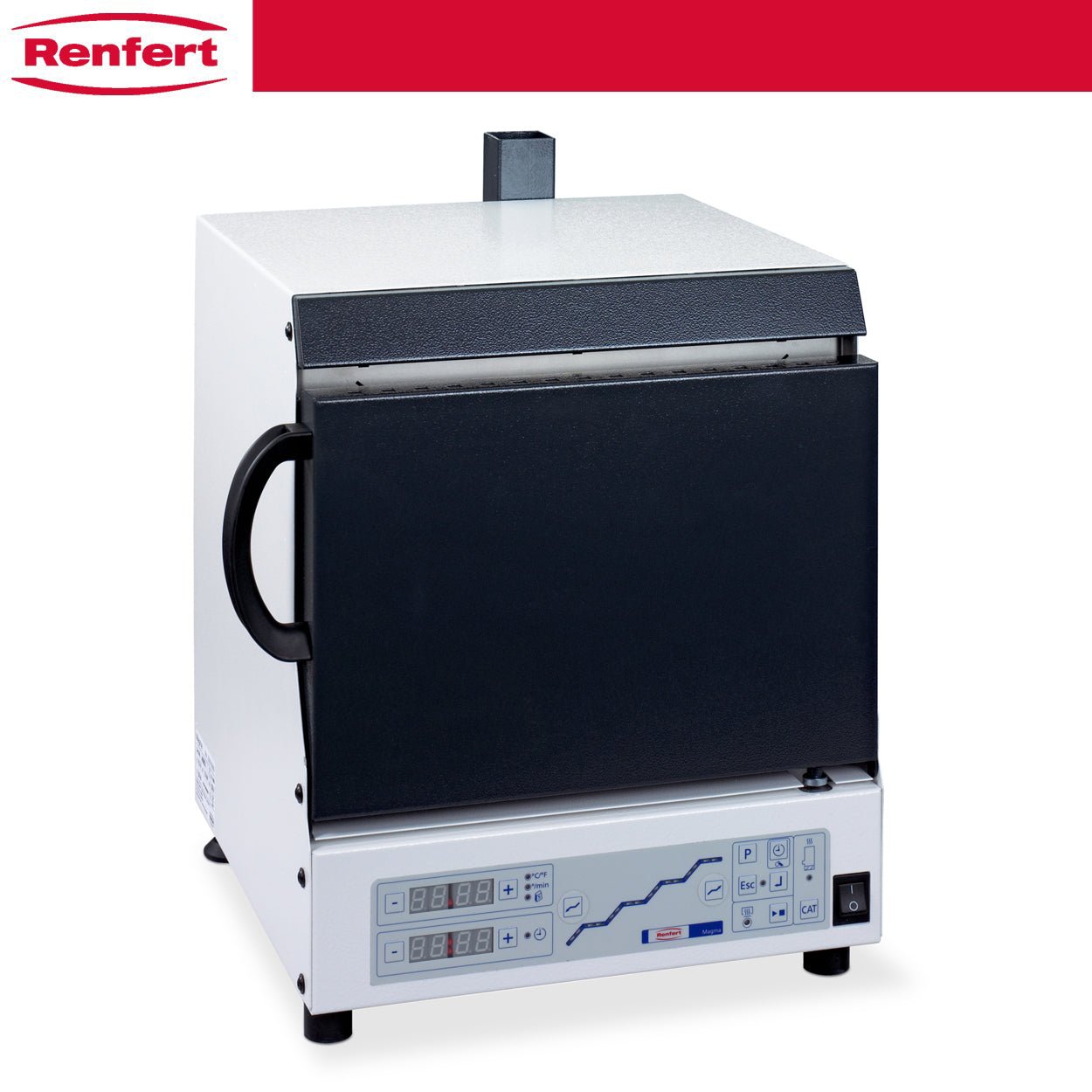

Magma Preheating Furnace
Regular price
$4,130.00
Couldn't load pickup availability
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.
Magma Preheating Furnace
Magma is a preheating furnace with all the technical features, which fulfill all the requirements in terms of programming, handling and ergonomics.
Advantages
- Four-sided heating ensures uniform heating in the entire furnace chamber.
- Quick heat rate: to 900°C (1654°F) in only 60 min.
- 99 Program storage spaces + 1 Program for speed investments.
Details
- The one-piece furnace chamber prevents localized heat loss, which is otherwise caused by joints.
- Guarantees uniform temperature distribution due to the high density of heating coils in thermally demanding zones.
| Stock Code | 23000000 |
|---|---|
| Permissible mains voltage | 220 - 240 V |
| Permissible mains frequency | 50 - 60 Hz |
| Temperature range | 1,100 °C 30 - 2,010 °F |
| Weight (incl. flue) | 30 kg 66.1 lbs |
| Dimensions (W x H x D) (incl. one handle and flue) | 430 x 500 x 440 mm 16.9 x 19.7 x 19.3" |
| Power consumption | 1,900 W |
| Volume (Muffle) | 3.45 l 0.91 gal |
| Mains input fuse | 12 A(T) |
| Programmable heating rate | 9 °C/min 17 °F/min |
| Max. heat-up rate in 1 hour | 900 °C 1,652 °F |
| Number of programmable stage programs | 99 |
| Number of speed programs | 1 |
| Type temperature sensor | PtRh-Pt |
