Diox Portable X-Ray System

In stock - 100 items available
Regular price $2,750.00
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.

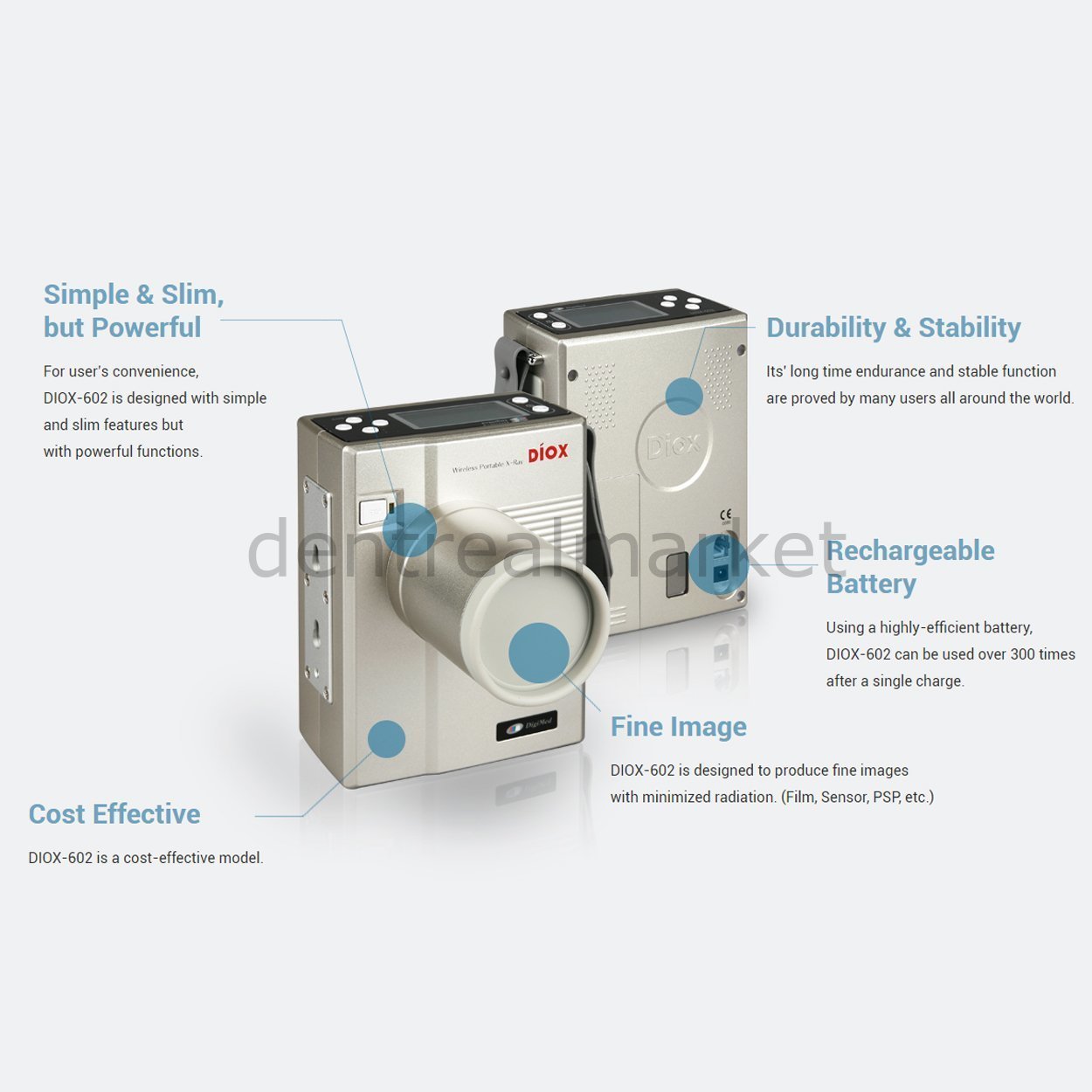

Portable X-ray System, DIOX-602 has proven its durability and stability for a long time.
For user’s convenience,DIOX-602 is designed with simple and slim features but with powerful functions.
Its' long time endurance and stable function are proved by many users all around the world.
Using a highly-efficient battery,DIOX-602 can be used over 300 times after a single charge.
DIOX-602 is designed to produce fine images with minimized radiation. (Film, Sensor, PSP, etc.)
DIOX-602 is a cost-effective model.
Compatible with a wireless remote controller.
Customized stands are compatible.(Wall mount or mobile stand)
Designed with a grip that has an anti-slip band for easy operation.
Model Name


X-Ray Generator-DC High Frequency
X-ray Tube-Tube Voltage-60kV
Tube Current-2 mA
Anode Type-Stationary
Anode Angle-20˚
Focal Spot-0.8mm
Heat Capacity-8.5 KHU
Exposure Time Setting-0.01~ 1.60 Sec. (0.01 Sec step)
Total Filtration-1.6 mmAI
SSD-100mm / 200mm (Long cone)
Total Weight-1.8kg
Dimension-135(w) x 150(d) x 175(h)
Power Requirement
Battery-DC 22.2 V
Charger-AC 100 ~ 240V
