Alltion Binocular Stereo Desktop Microscope 112BS
Couldn't load pickup availability

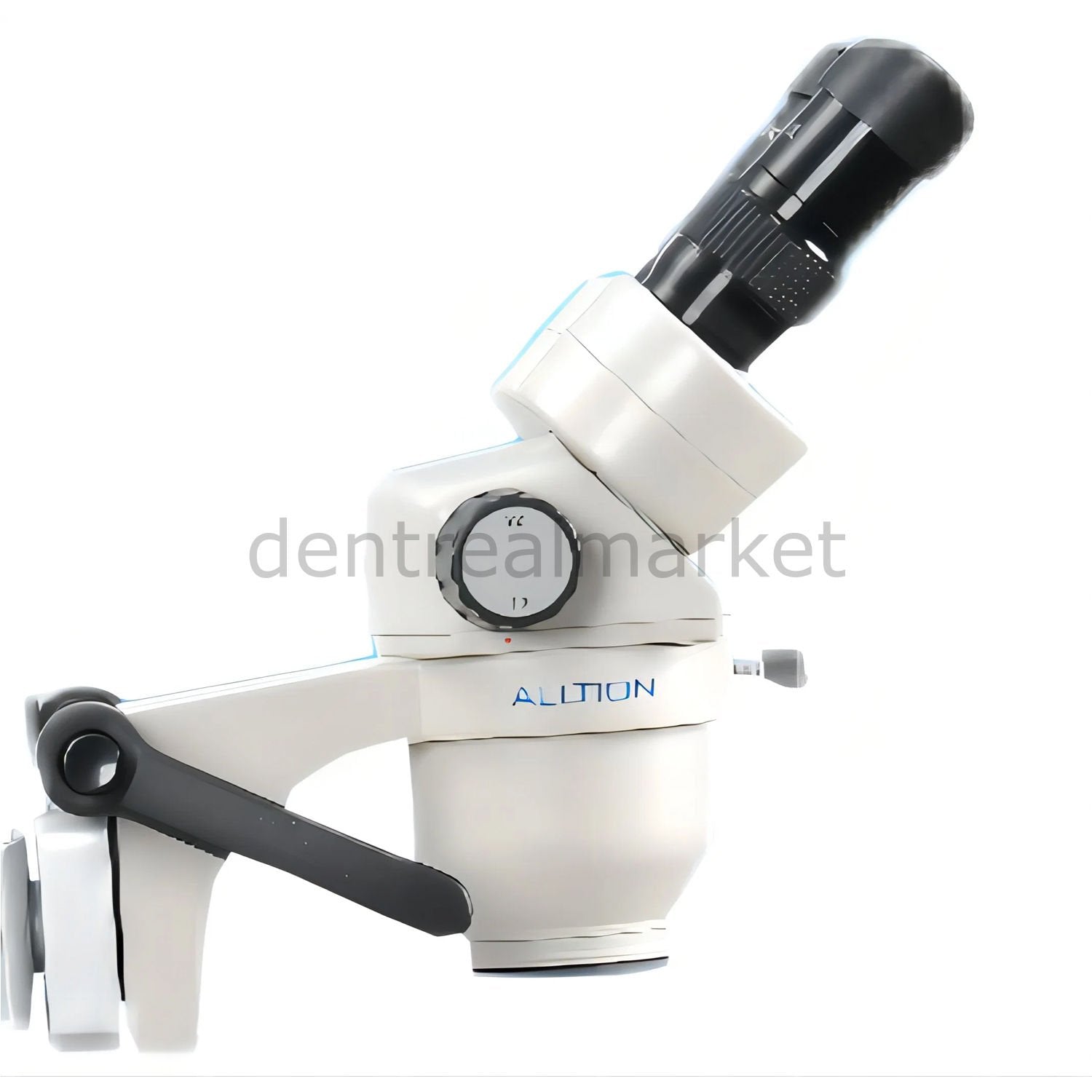

Alltion ASM-112BS Binocular Stereo Microscope – Pantograph Arm
Alltion ASM-112BS is a two-step binocular stereo laboratory microscope designed for fine dental laboratory work.
10X / 20X two-step magnification (zoom ratio 1:2); working distance 105 mm.
Observation tube inclination is 45°. Eyepieces are 10X with field of view Φ23 mm. Interpupillary distance adjusts from 52–75 mm. Diopter adjustment is provided on the left eyepiece tube only.

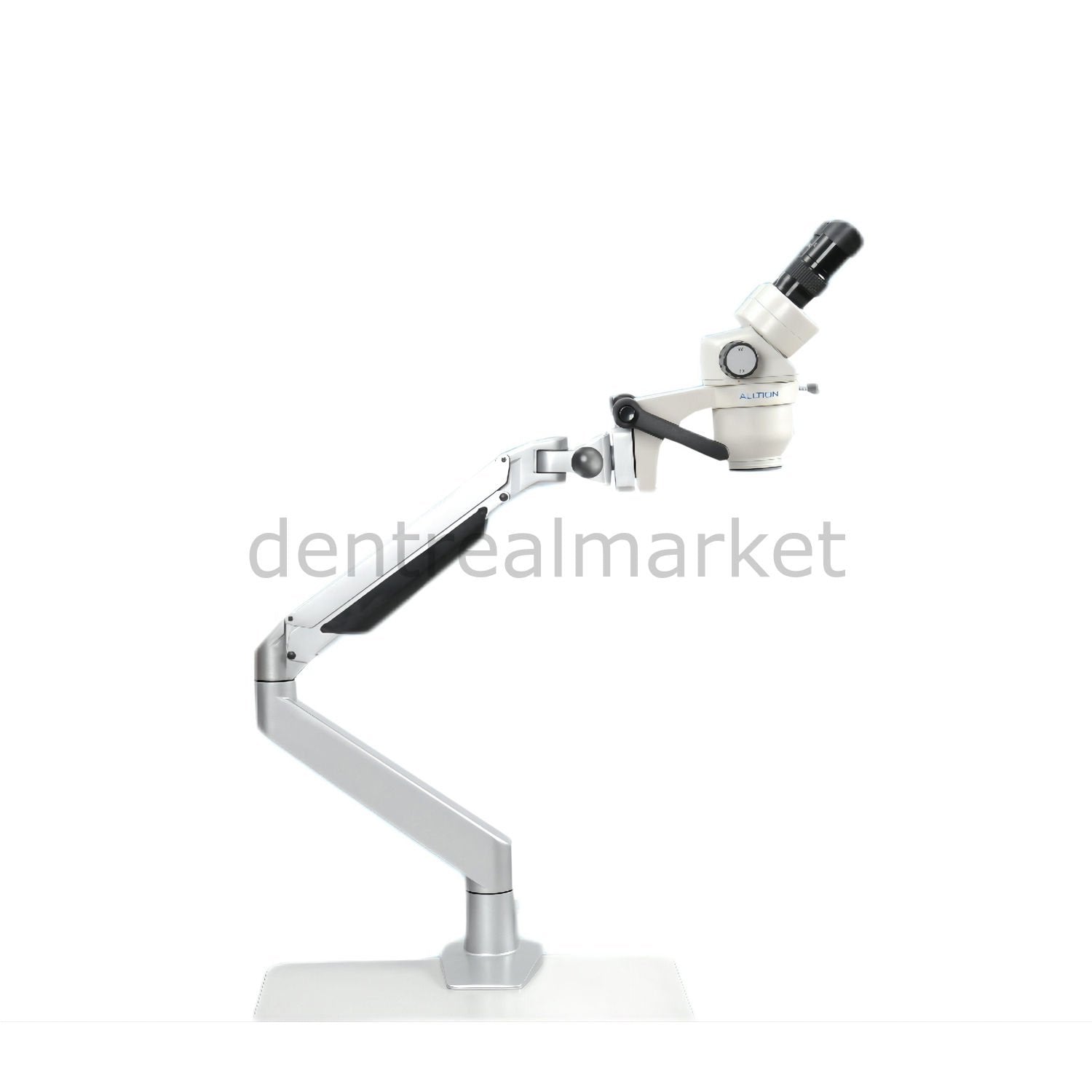

The pantograph arm with table-top clamp uses a random-stop gas spring to extend the working range; handles aid positioning and the arm locks automatically.
A protective lens is included as standard. A 77-diode LED ring light is available as an optional accessory.
Technical Specifications
- Model: ASM-112BS
- Total magnification: 10X / 20X (two-step)
- Zoom ratio: 1:2
- Working distance: 105 mm
- Observation tube inclination: 45°
- Eyepieces: 10X / field of view Φ23 mm
- Interpupillary distance: 52–75 mm
- Diopter: left eyepiece tube only
- Tube: Binocular
- Stand: Pantograph arm with table-top clamp (gas spring)
- Protective lens: standard
- LED ring light (77 diodes): optional
