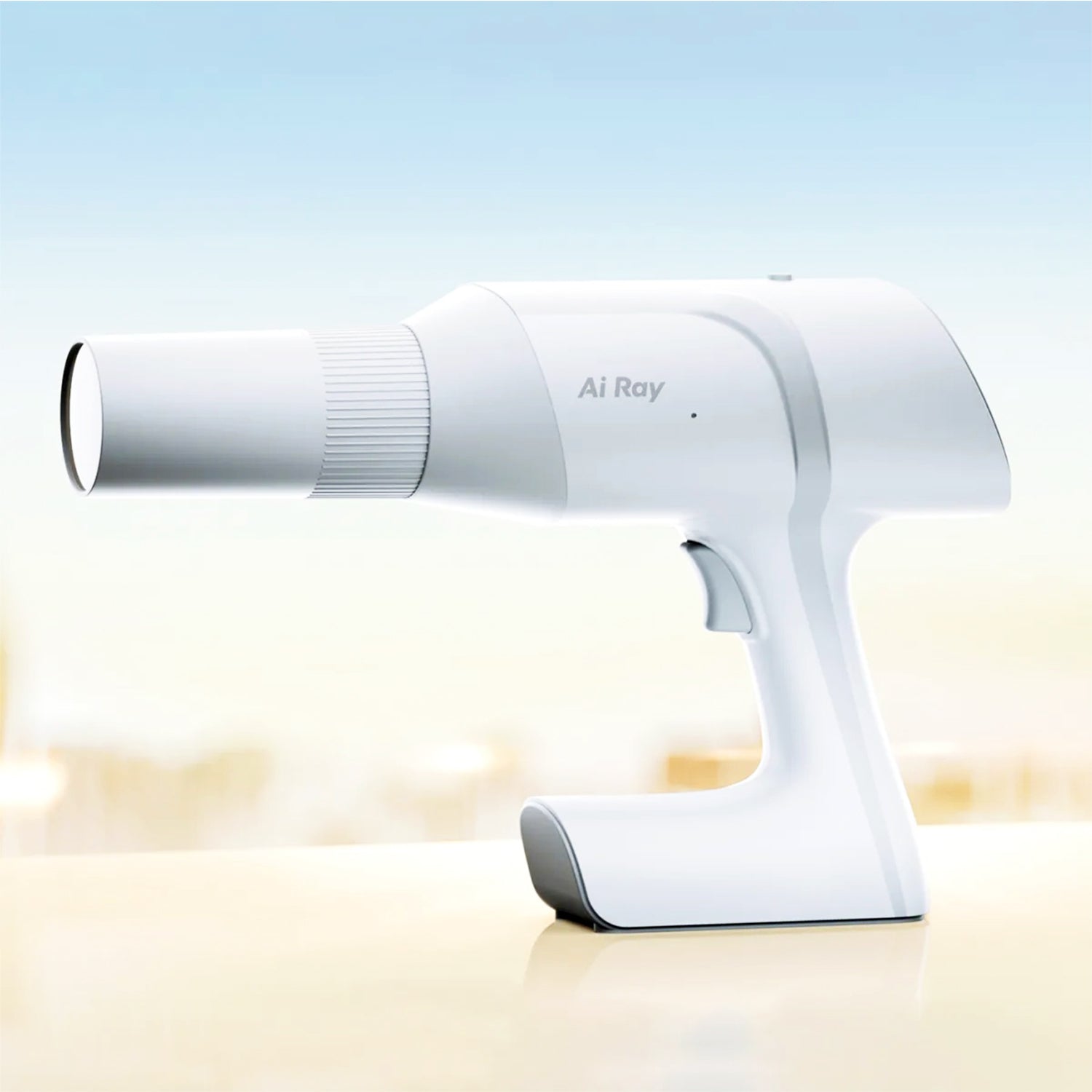

Woodpecker Ai Ray Portable X-Ray Machine

The Woodpecker Ai Ray Portable X-Ray machine is designed to capture high-quality X-ray images of teeth, providing dental professionals with a reliable and efficient imaging device. Its compact and portable design allows for flexibility in various clinical settings.

Key Features:

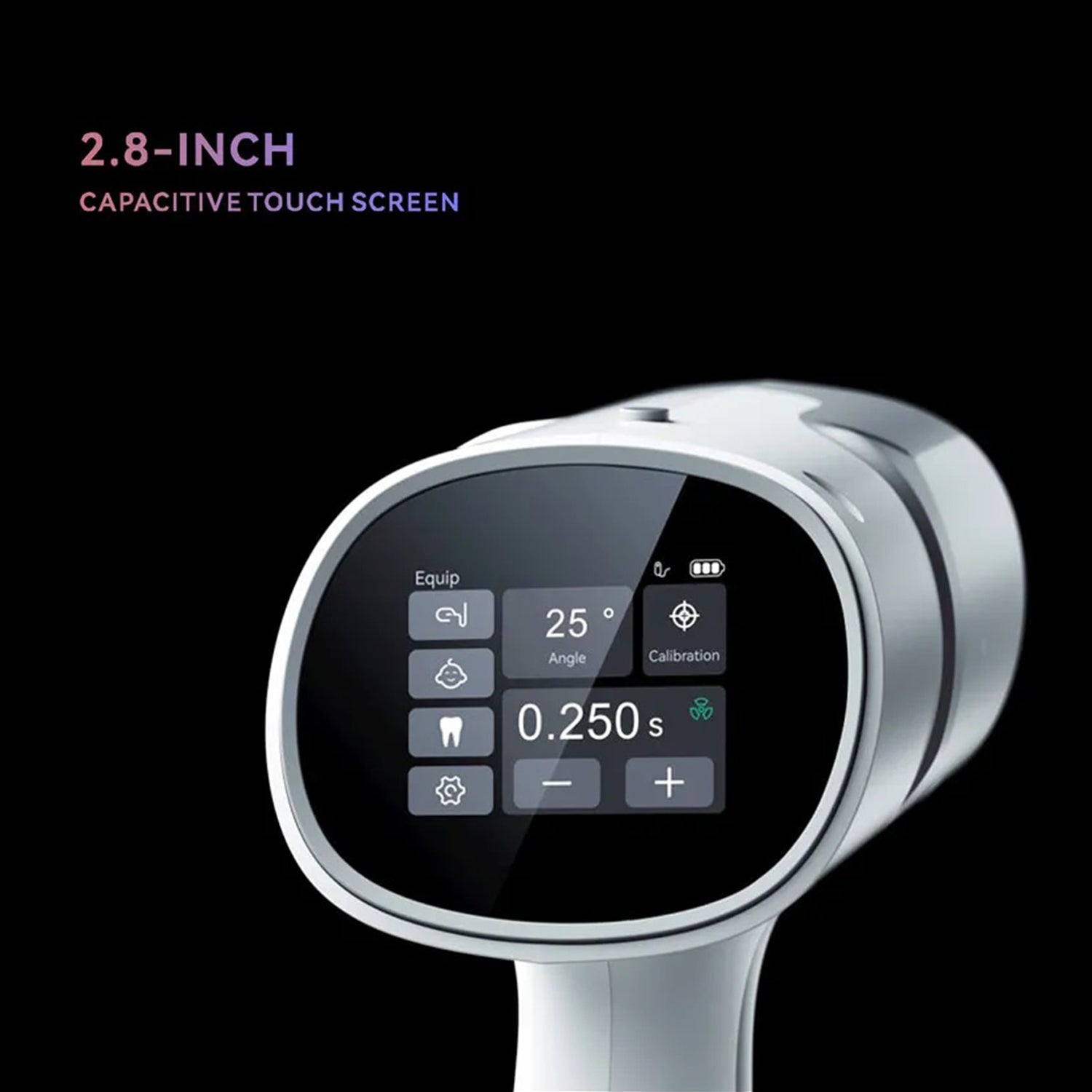

  • User-Friendly: The intuitive control panel and interface simplify navigation, setting selection, and precise image capture.
  • Clinical Advantages:
    • High efficiency in delivering high-quality images.
    • Non-invasive diagnostic imaging ensures patient safety with minimal radiation exposure.
    • Compatible with all X-ray types, including IOPA Film and RVG.

Superior Performance:

  • High Efficiency:
    • Up to 210W emission power.
    • Shorter exposure times with higher power.
    • Stable, accurate, and fast image capture in different tooth positions.

Various Image Capture Methods:

  • Compatibility:
    • Internal remote control receiver circuit and holder interface, compatible with wired remote control and triangular holder.
    • Various image capture methods for safer and easier procedures.

Detailed Dental Films:

  • High-Quality Images:
    • 0.4mm focal spot X-Ray provides high-quality and clearer images for various diagnostic needs.

High-Capacity Battery:

  • Long-Lasting:
    • 15000mAh high-capacity lithium battery.
    • Can capture over 1500 dental films on a full charge.
    • Full charge in 4 hours.

Product Specifications:

  • Size: 114mm × 363.8mm × 245.6mm
  • Weight: 2.4kg
  • Battery Specifications: 10.8V / 2450~15000mAh

Operating Environment:

  • Temperature: 10°C ~ 40°C
  • Relative Humidity: 30% ~ 75%
  • Atmospheric Pressure: 70kPa ~ 106kPa

Transportation and Storage Conditions:

  • Storage Temperature: -20°C ~ 55°C
  • Transportation Temperature: -20°C ~ 55°C
  • Relative Humidity: 10% ~ 93%
  • Atmospheric Pressure: 70kPa ~ 106kPa

Ai Ray Technical Information:

  • Power Adapter Input: 100-240V 50/60Hz 1.54
  • Internal Power Supply: DC 10.8V
  • Radiation Types: X-Ray
  • Electrical Power:
    • Maximum Power: 0.21 kW (70kV, 3mA, 0.1s)
    • Nominal Electrical Power: 0.21 kW (70kV, 3mA, 0.1s)
  • Tube Voltage: Fixed output at 70kV, error ±10%
  • Tube Current: Fixed output at 3mA, error ±20%
  • Loading Time: Adjustable exposure loading time in the range of 0.02s ~ 2s, class adjustable, selected according to class R'10 number system; deviation ±(10%+1ms)

X-Ray Details:

  • Model: D-045
  • Focal Spot: 0.4mm
  • Target Angle: 12.5°
  • Total Filtration: 1.5mmAl/70kV
  • Additional Filtration: 0.5mmAl/70kV
  • Distance from Focal Spot to Skin: 20cm
  • Output Radiation Field: Φ6cm ± 0.6cm
