Alltion Camera-Mountable Desktop Microscope - Laboratory Microscope 0745TS
Impossible de charger la disponibilité de la réception
Alltion ASM-0745TS Trinocular Stereo Zoom Microscope – Pantograph Arm
Alltion ASM-0745TS is a stereo zoom laboratory microscope designed for dental laboratory and dental technical work.
7X–45X stereo zoom (objective 0.7X–4.5X, zoom ratio 1:6.5) with a trinocular tube; binocular observation continues while a camera is in use.
Working distance is 110 mm. Observation tube inclination is 45°. Eyepieces are SWF10X with field of view Φ23 mm. Interpupillary distance adjusts from 52–75 mm. Diopter adjustment is provided on both eyepiece tubes. Magnification is set with both horizontal hand wheels.

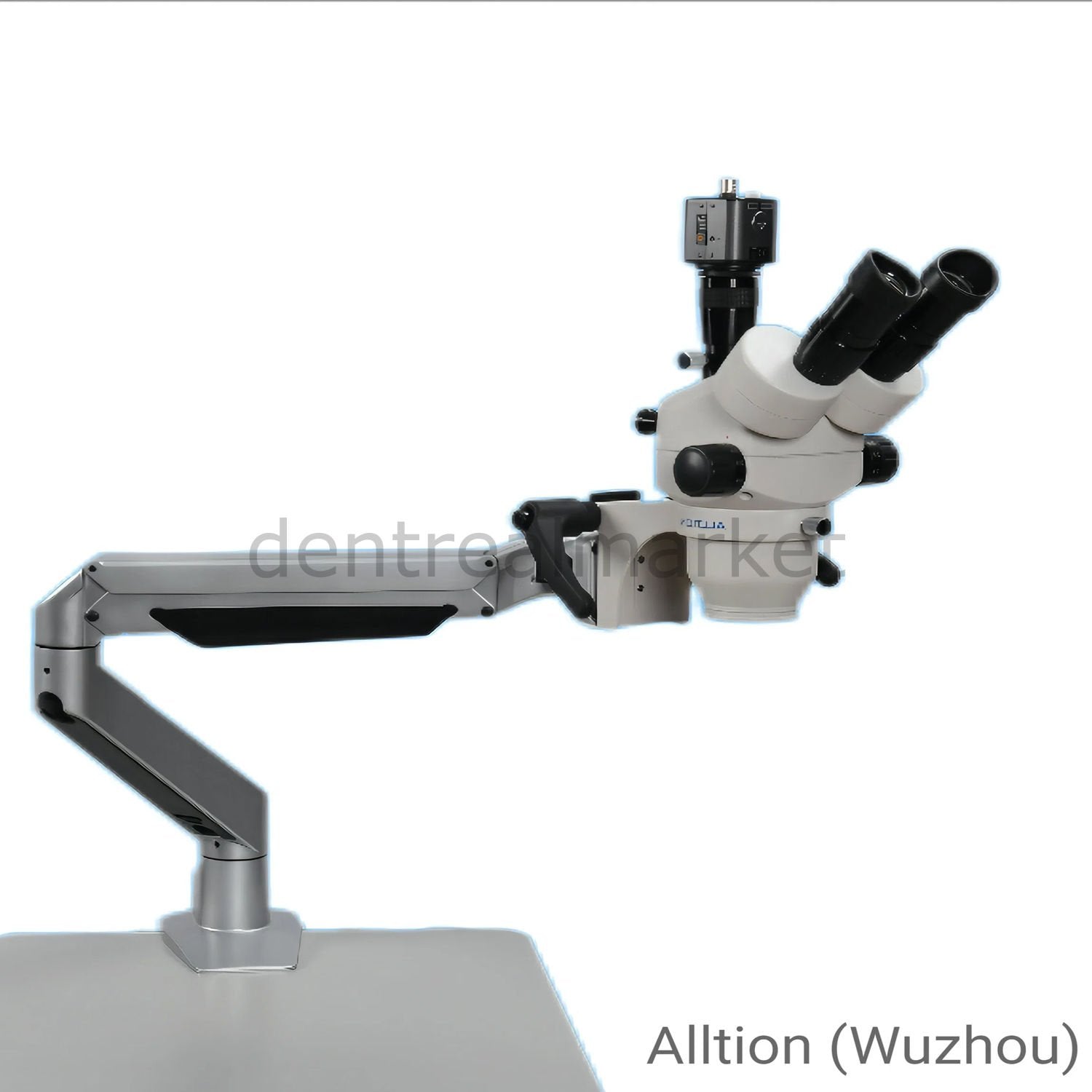

The pantograph arm with table-top clamp uses a random-stop gas spring to extend the working range; handles aid positioning and the arm locks automatically.
With the trinocular design, a CCD or SLR camera can be attached via optional adapters. The beam-split design allows observation through both eyepieces while the camera is operating.
A protective lens is included as standard. A 77-diode LED ring light is available as an optional accessory.
Technical Specifications
- Model: ASM-0745TS
- Total magnification: 7X–45X
- Objective magnification: 0.7X–4.5X
- Zoom ratio: 1:6.5
- Working distance: 110 mm
- Observation tube inclination: 45°
- Eyepieces: SWF10X / field of view Φ23 mm
- Interpupillary distance: 52–75 mm
- Diopter: both eyepiece tubes
- Tube: Trinocular (camera-ready)
- Stand: Pantograph arm with table-top clamp (gas spring)
- Protective lens: standard
- LED ring light (77 diodes): optional
