MediDVR MD2 HD Medical & Surgical Video Recorder Without Disk + Single Foot Switch

In stock - 100 items available
SKU: 30431-010
Regular price $2,850.00 inc. VAT
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.

Overview

Medical grade video recorder, MD2 – the second generation mediDVR, is industry’s most affordable and versatile high definition recorder solution. It combines superior image and video quality all versatile inputs extensive easy control various removable storage media and a range of innovative features.

MediDVR can record high-definition crisp 1080p video from endoscope arthroscopy surgical camera C-Arms ultrasound etc. Saves extremely clear still images and videos to an internal removable HDD external USB HDD USB Flash SD Card or network. With HDD  or NFS, it can record the highest quality HD video for up to two weeks or more. Three-level record quality is available. On-board gain adjustable Omni-directional microphone buzzer and full color LED feedback are also available.

Meanwhile, MediDVR supports real-time streaming by connecting to the hospital network. It enables the live transmission of procedures to other practitioners or students outside  the operating theater for training or monitoring purposes on PC or iPad/iPhone.

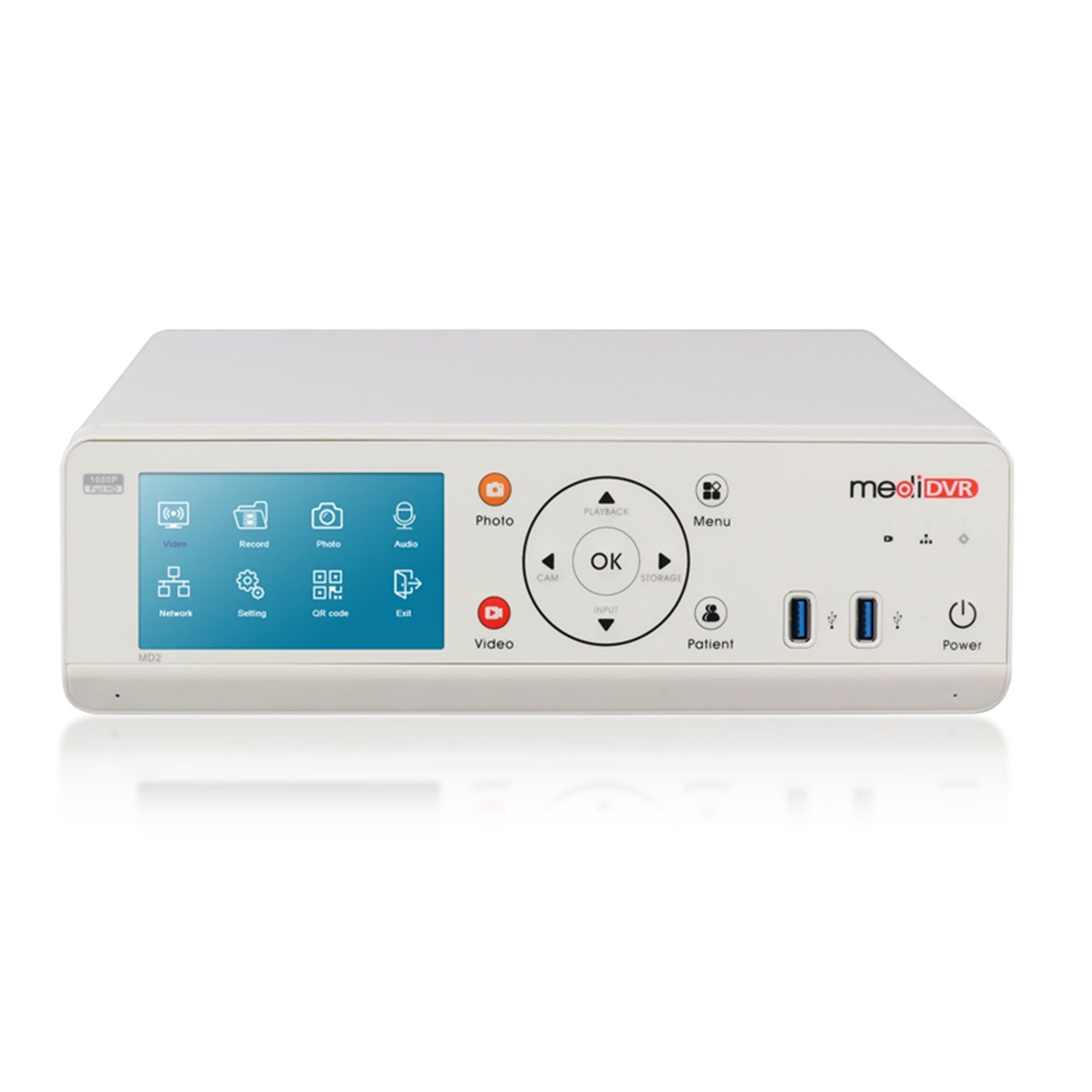

New MediDVR has a 4.3” resistive touch screen and user-friendly operation even with gloves. Live PiP and collage can be previewed, switched, set up by touch UI. PiP allows medical video and ECG displayed on the same screen and recorded. All recording, photo, patient, replay, storage status are available on the screen. Physical buttons are also available besides the touch UI.

MediDVR is universal and easily operated without special training required. It is just plug and play. Besides the foot pedals LANC remote control is also available it can provide extension cable length and recording status feedback. The front panel is fluid-resistant.

MediDVR has universal video connectivity and compatibility the multiple video input formats enable compatibility and integration with virtually all surgical system manufacturers. It accepts a wide range of video interfaces and types: CVBS, YPbPr, DVI, VGA, S-Video, HD/3G SDI, HDMI as well as 1080i50/60 or 1080p50/60. It also has SDI, HDMI and even analog to HDMI loop output.

The MediDVR can be used in an almost unlimited number of situations , and the major application is in medical imaging. No longer limited to paper or film-based images and no longer any need for cumbersome DVD disks. The MediDVR allows you to easily record digital video and images directly to a flash drive or hard drive. You can archive and share your recordings on a secure hospital network, enhance them with third-party editing programs, etc.

Features

  • Easily record crisp 1080p video and images
  • PiP video preview and record make ECG overlay possible
  • Creative dual video inputs, live collage switch and preview
  • Up to 20mbits/s high-quality video codec in H.264 format
  • Adaptive AAC audio codec for analog and embedded audio
  • 4.3” LCD and resistance touch screen, friend to gloves and fingers
  • QR code scan for direct remote control by mobile phone or PC
  • DVI/HDMI/SDI inputs and embedded audio support
  • Universal inputs with VGA, S-Video, YPbPr, S-Video analog support
  • Automatic video input resolution, format-detection
  • SDI loop out, HDMI and even analog to HDMI loop out support
  • Still Image Photo and DICOM support
  • Optimized recording for medical image process
  • Mp4, mov video format all supported
  • Footswitch, hand switch supported for remote control
  • The video formats support most video edit software
  • Instant replay to preview on LCD or monitor
  • Universal storage works with all major USB Flash, SD Card, USB HDD
  • Internal removable SATA HDD up to 2TB
  • Support Full HD video up to 1080p@60
  • Both HD and 3G SDI video inputs supported
  • Onboard and external microphone support, gain adjustable
  • Powerful patient information input and management
  • USB standard keyboard support for patient information and notes
  • Live video streaming in LAN on any devices
  • Shortcuts to quickly switch video source and storage media
  • Small size, low cost, and high quality
  • Cost-effective and easy operation
  • Medical grade and certification.
  • Certificate: CE, FCC, EN60601-1, EN60601-2



Specifications

Power
Voltage AC 110-240V 2A 50/60Hz,
Medical grade power filter and supply
Connector IEC Inlet 3 prong AC Outlet
Video and Photo
Video Encoder H.264/AVC, MP/HP
Resolution 1920×1080 @25/30/50/60fps, 1280×720 @50/60fps
480i/576i 1080i@50/60
SMPTE 296M/274M/292M,425M/424M DVI/HDMI all resolution
Quality 3 level quality
Frame Rate 24/25/30fps, 50/60fps
Codec H.264, mp4/mov file format
Rate Control CBR/VBR
Photo Jpeg, DICOM, BMP
Network
LAN 100/1000M Base-T
Streaming RTSP
WIFI6 802.11b/g/n/ac, 2.4/5.8GHz
Audio
Sampling 32-48Khz 16bits
Codec AAC Stereo
Channels 2 with AGC 2.2VDC Bias, 2.2Kohm, <0.7VRMS
-36db. MIC gain adj.

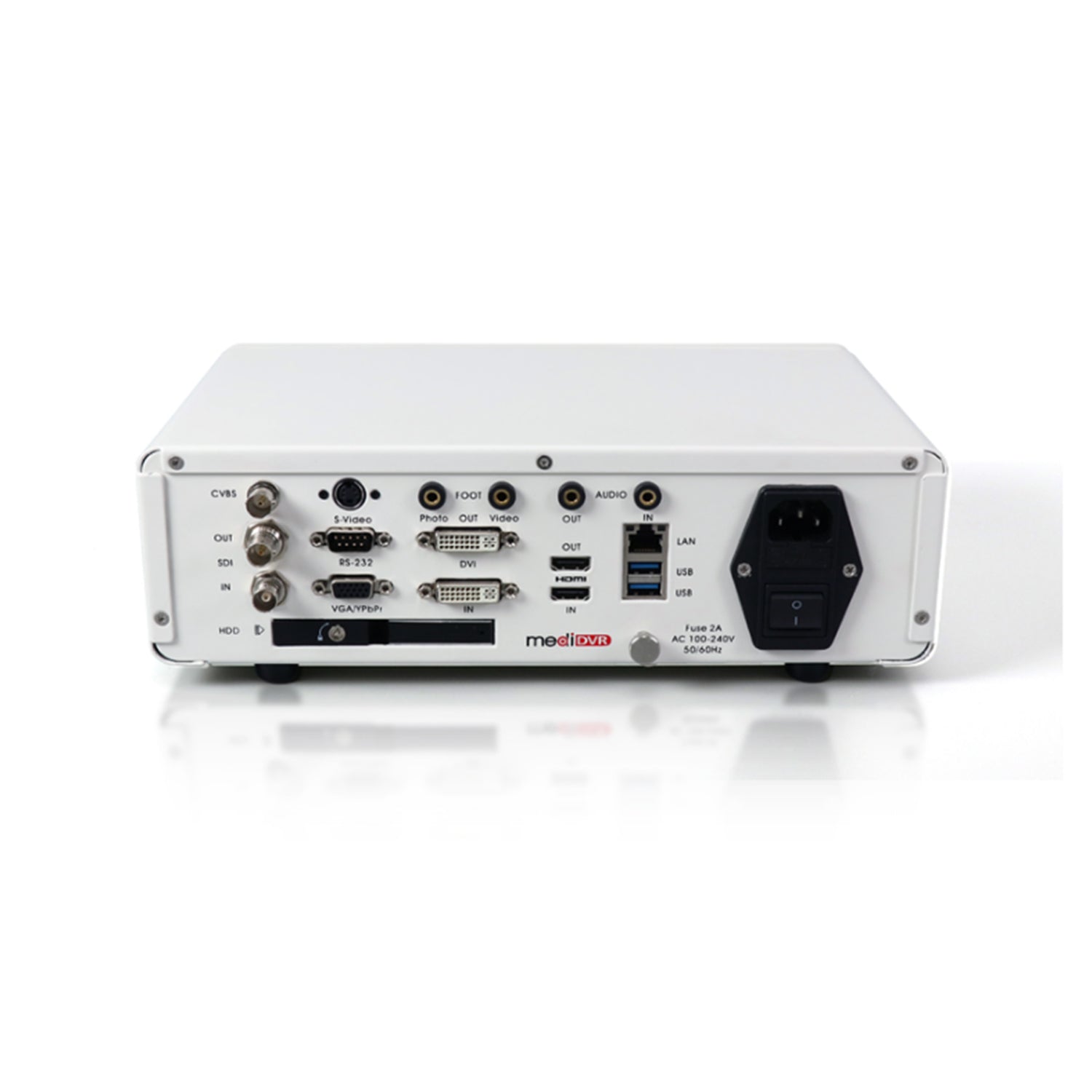

Interface
HD/3G SDI Input 1 x BNC, 75ohm 800mVpp
DVI Input 1 x DVI, Receptacle
VGA Input 1 x 15 D-Sub
CVBS Input 1 x BNC, 75ohm 1Vpp
S-Video Input 1 x 4pin, Mini-DIN
HDMI Input 1 x Type A, Receptacle
YPbPr Input 3 x BNC Via VGA
Preview LCD 4.3”
Preview Output 1 x DVI, Receptacle
SDI Loop Out 1x BNC, 75ohm, 800mVpp, HD/3G SDI
HDMI Loop Out 1 x TYPE A, Receptacle
Front MIC in. Two Channel, Omni-directional
Back Mic In. 2CH 2 x 3.5mm, jack External
Audio In 2CH 2 x 3.5mm, jack 20Kohm higher
Aduio Out 2CH, 2 x 3.5mm Jack
Network RJ45, 100/1000M Ethernet
USB 4 x USB,TYPE A, 2 x front, 2 x rear
Alert Buzz
Foot Pedal 2 x 3.5mm Jack, 1 x Photo 1 x Video
Visible Full Color LED
LCD 4.3” IPS, Resistance Touch
Remote Mobile phone, PC, RESTFUL
Button Sealed Membrane, Fluid Resistant
Storage
Internal 2.5″ SATA HDD Removable (Sold Seperately )
External 2 x USB Flash Drive, USB HDD (Sold Seperately )
Disk Format FAT32, up to 2T
System Requirements
Interface USB 3.0 Interface
Card Reader USB 3.0 SDHC Card Reader
Card Interface SDHC Card Interface
Monitor Resolution 1920×1080
Physical
Size 300 x 211 x 97.5mm(11.8” x 8.3” x 3.8”)
Weight 2.98kg (6lb 7.7oz) without HDD
Operating 0°C to 45°C(32°F to 113°F)
Storage -20°C to 60°C(-4°F to 140°F)
  Certificate FCC, CE (EN60601-1, EN60601-2)
