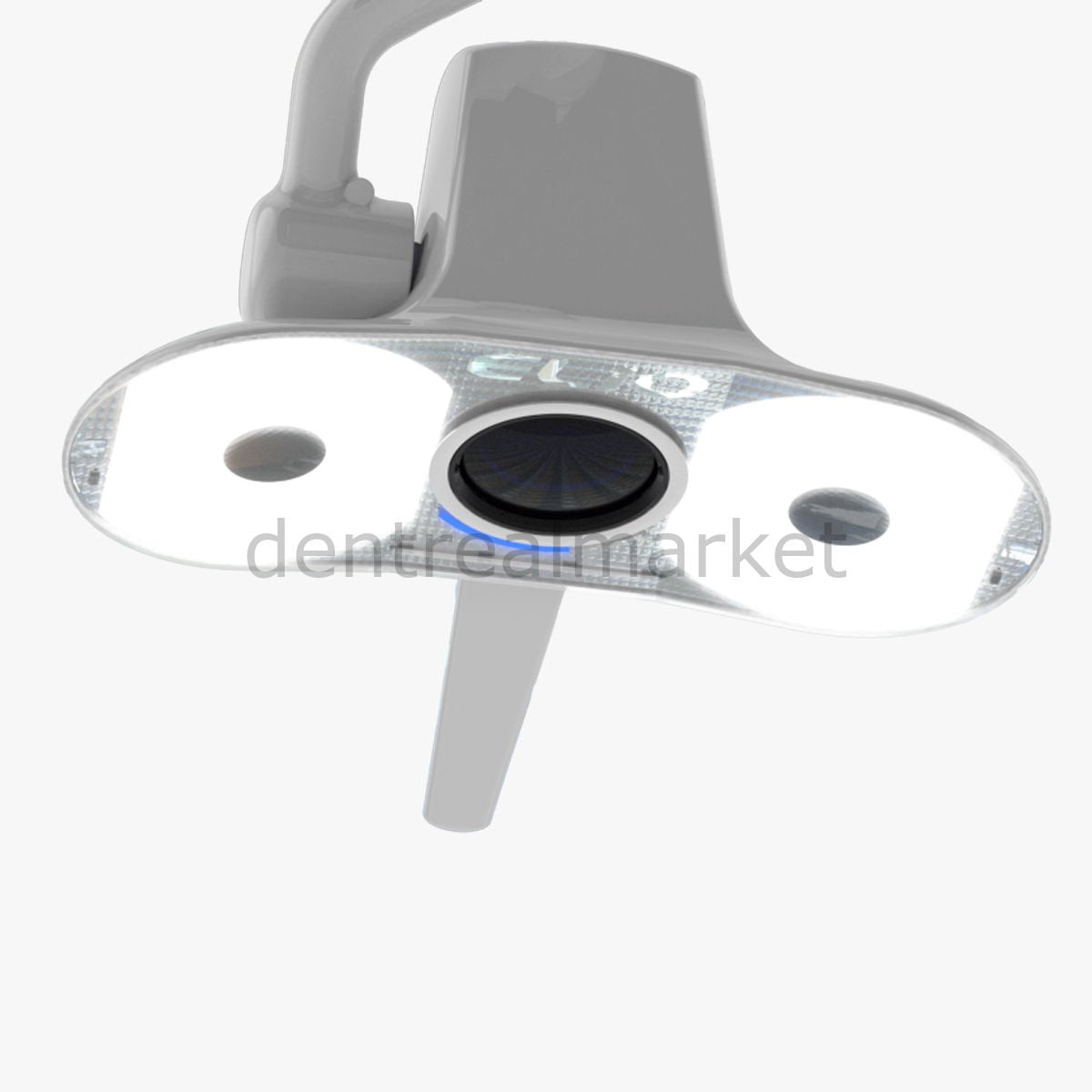

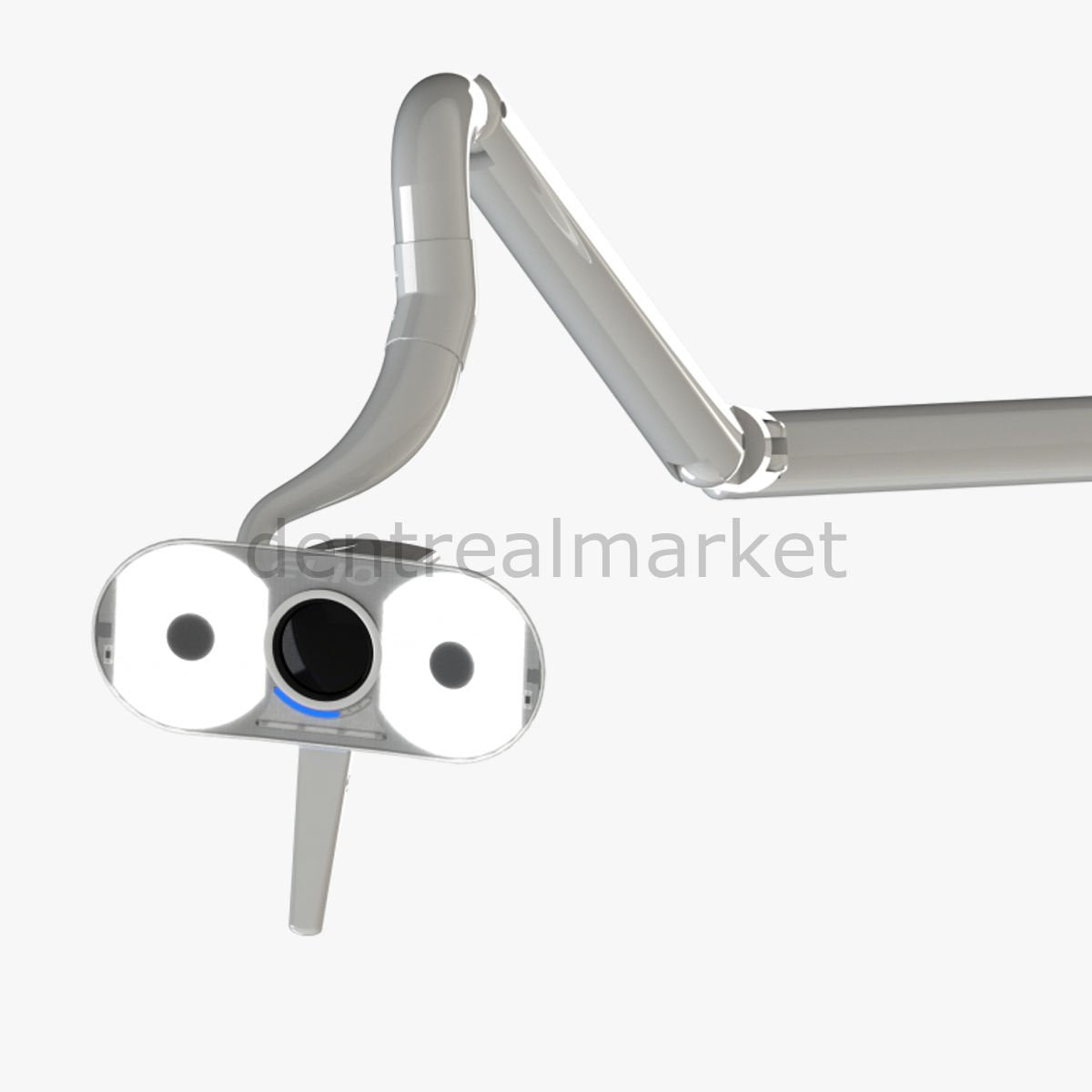

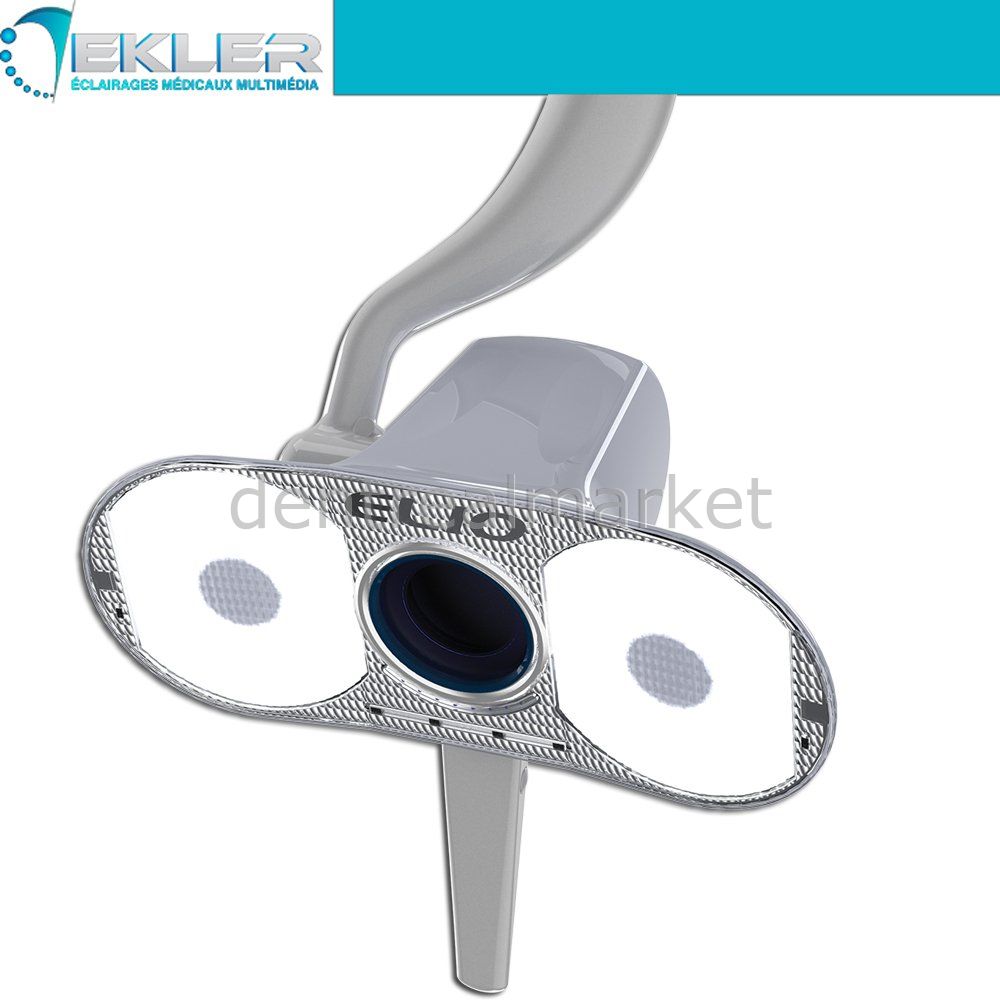

Ekler Elio HDM 60X Zoom and Autofocus Dental Surgery Camera & Reflector - Ceiling Mounted

Elio HDM 60× Zoom and Autofocus Surgical Camera & Reflector — Ceiling Mount

Elio HDM is an advanced dental examination microscope designed especially for dental practice. It stands out with high magnification capability and advanced optical performance.

By replacing traditional surgical lighting systems, it clears the working area of unnecessary equipment and gives clinicians greater freedom of movement.

Features and Performance

Microscope Type and Ergonomics

• Microscope type: Dental examination microscope.

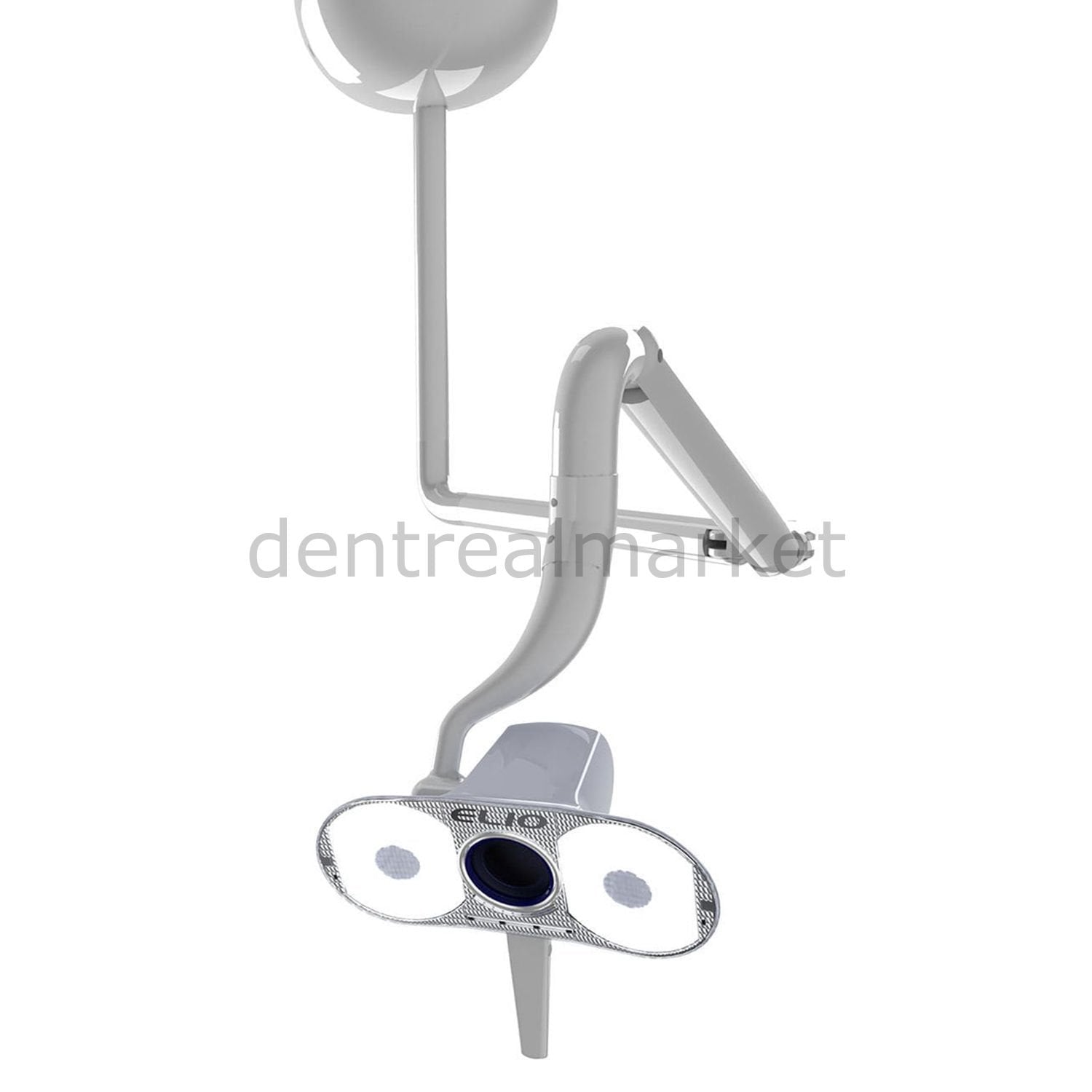

• Ergonomics: Ceiling-mounted, optimizing the clinician’s working area and leaving no footprint on the tabletop.

Visual Performance

• Camera: Full HD with an advanced autofocus system.
• Magnification: 60× optical zoom for examining tooth and soft-tissue structures in fine detail.
• Field of view: Horizontal viewing angle from 48° to 2.8°.
• Depth of field: Wide depth of field that helps keep the working area in focus.

Light Characteristics

• Color temperature: Natural white daylight (6000 K ±5%).
• Color accuracy: 90% color accuracy for near-true colors.
• Light intensity: Adjustable, up to 52,000 lux.
• Shadow formation: Shadow-free so the working area stays fully illuminated.
• Sterility: Fully sealed and waterproof for optimal asepsis.
• UV radiation and heat: No UV radiation and no extra heat output, supporting patient comfort.
• Fan and noise: Fanless, silent operation that preserves a quiet environment.
• Light source: 2× LED × 6 W, total consumption 12 W.
• Lifespan: 50,000 hours.
• Power supply: 110–220 V, fed by an independent stabilized converter.

Image Quality

• Lens: 60× zoom lens.
• Resolution: 1080p (1920 × 1080) video recording at 60p.
• White balance: Automatic, indoor and outdoor modes.
• Video outputs: YPbPr outputs.
• Lighting requirement: Low-light capability (0.7 lux).
• Power consumption: 6–12 V DC, 3.3 W.

Areas of Use

• Everyday dental practice: Suitable for general dental examinations and minor surgical procedures.
• Restorative dentistry: Helpful in restorative work, especially fillings, veneers/crowns, and other restorative treatments.
• Periodontology: Used in the diagnosis and treatment of gingival disease.
• Prosthetic procedures: Supports detailed examination and precise work during prosthetic applications.

With high-performance optics and lighting, Elio HDM gives clinicians a clearer, more detailed working field and supports more precise, effective treatment.

Advantages

• Detailed examination: High resolution and precision for close study of tooth and soft-tissue structures.
• Advanced image quality: Superior image quality from the Sony sensor for a clearer, more accurate working field.
• Low-light performance: Strong performance even in low light for more flexible working conditions.
• Ease of use: Features such as autofocus and white balance simplify use and reduce distraction during procedures.
