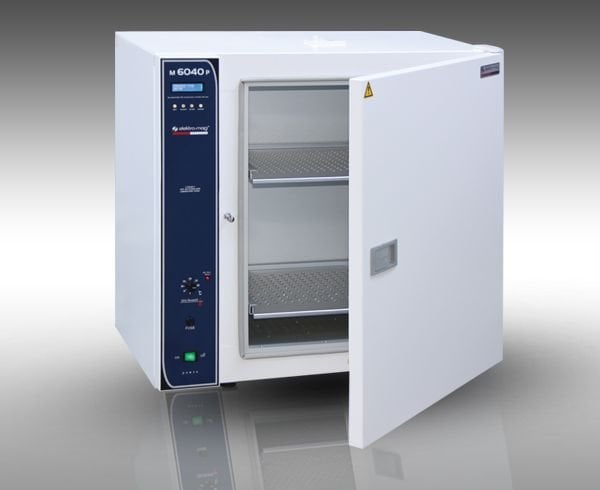

Elektromag 120 L Dry Heat Sterilizer

Elektromag 120 L Dry Heat Sterilizer

120 L dry heat (hot-air) sterilizer with PID digital temperature control up to 250 °C.

Elektromag 120 L dry heat sterilizer for hot-air sterilization and laboratory heating/drying applications.

Used for dry-heat sterilization in hospitals, clinics and practices, and for multipurpose heating and drying in quality-control laboratories. Heaters are outside the working volume for more even chamber heating; a manually adjustable natural-air vent is on top, and an optional circulation unit can be fitted for improved uniformity. Adjustable feet and a safety thermostat are included.

Technical specifications

Technical specifications

• Temperature range: ambient +5 °C to 250 °C
• Internal volume: 120 L
• Thermoelement type: Fe-Const
• Temperature control: PID digital
• Load switching: SSR (solid-state relay)
• Thermostat setting resolution: 1 °C
• Thermostat accuracy: ±1 °C
• Thermometer reading resolution: 1 °C
• Internal temperature uniformity: ±2 °C
• Timer: 1–9999 minutes (starts when set temperature is reached)
• Safety: liquid-expansion safety thermostat (50–300 °C)
• Outer cabinet: electrostatic oven-painted steel
• Inner chamber: anodized aluminum
• Insulation: rock wool
• Shelves: perforated anodized aluminum (2 pcs)
• Fuse: 10 A
• Heater power: 1750 W
• Supply: 220 V / 50 Hz
• Internal dimensions (W x H x D): 50 x 60 x 40 cm
• External dimensions (W x H x D): 79 x 79 x 53 cm
• Net weight: 53 kg; packed: 57 kg
