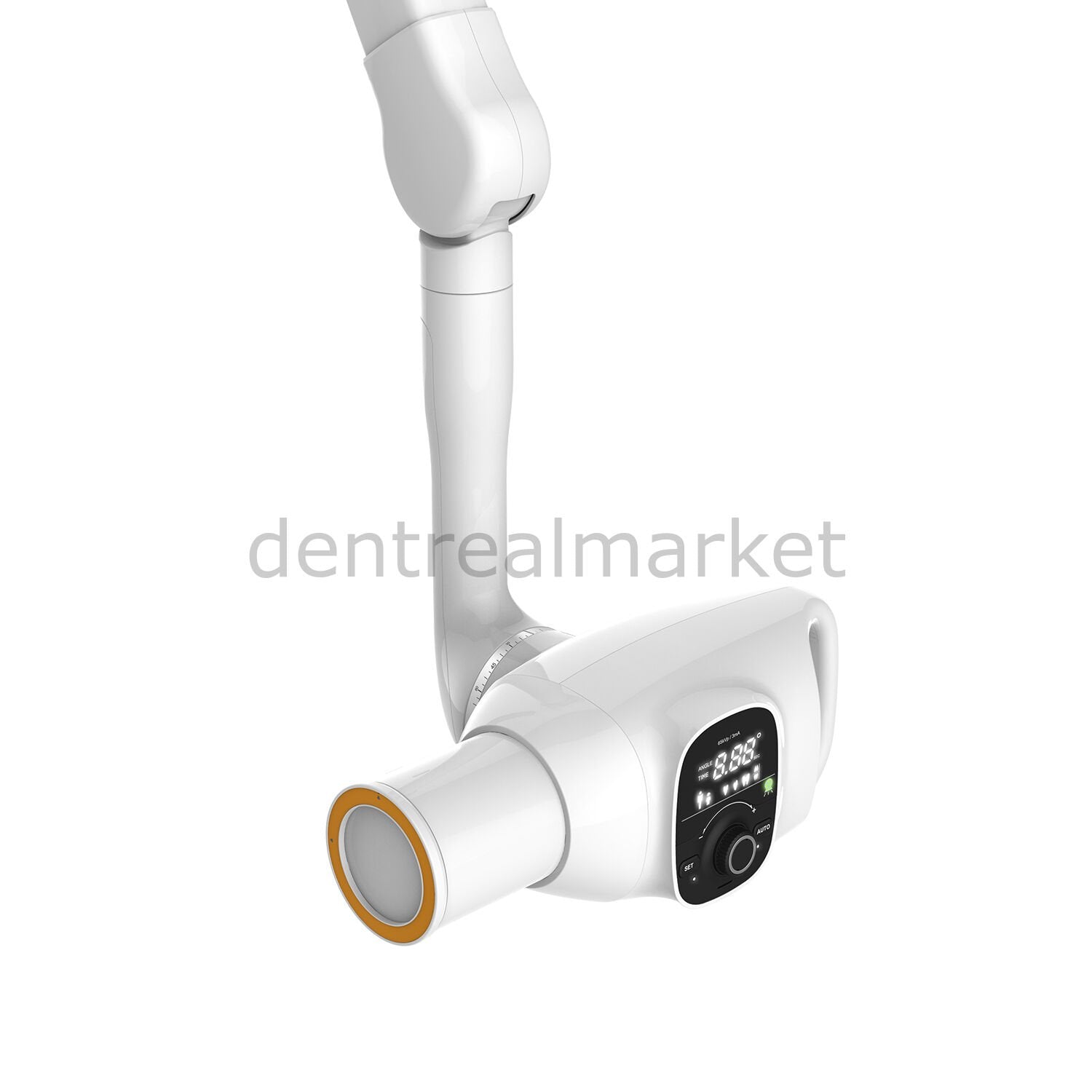

Vatech EzRay W Air Wall-Mounted Periapical X-Ray

EzRay Air W wall-mounted periapical X-ray

EzRay Air W is a lightweight, ergonomic dental X-ray unit designed with modern carbon nanotube (CNT) technology. It delivers high intraoral X-ray image quality while being easy to use and position. Its unique technology also eliminates oil-filled tubes and overheating issues.

Key features

• Lightweight and ergonomic design: Only 15.9 kg total; the tube itself is lighter than 2.5 kg. Ergonomic design for easy use and handling
• Simple control with smart button: Smart button on the tube head performs operations faster and more simply — no need to remember complex control buttons and settings
• Clear images: 0.4 mm focal spot minimizes blur for all intraoral sensors and adds diagnostic value
• Easy to use: Fully ready for busy daily use; easy for dentists to set up and space-saving
• High performance: Tube voltage 65 kV, tube current 3.0 mA; exposure time range 0.05–0.5 seconds (in 0.01-second increments)

Technical specifications

• Focal spot: 0.4 mm (IEC 60336)
• Tube voltage: 65 kV
• Tube current: 3.0 mA
• Arm length: 450/600/900 mm
• Accessories: Remote exposure switch (hand switch / doorbell switch)
• Weight: 15.9 kg (450 mm arm length)
• Exposure time range: 0.05–0.5 seconds (in 0.01-second increments)
• Source-to-skin distance: Minimum 20 cm
• X-ray field: Default: 60 mm round, 30×40 mm rectangular / Optional: 20×30 mm rectangular
